GF10B foam generator for foam concrete machine
Model:GF10B
Max.Output:10 m3/h
Motor power(kw):13.2 kw
Mixer tank capacity:350 L
Max.Horizontal Transporting Range:40 m
Max. Vertical Transporting Height:300 m
Description
GF10B foam generator for foam concrete machine includes A Screw Conveyor, A Concrete Mixer, A Foam Generator And A Foam Concrete Pump, adopts advanced control technology, can exactly adjust the density of foam cement. The capacity is 10m3/h, which is specially designed for small and midium-sized project. It can put directly on the truck for working. At present, our products have already exported to overseas markets, achieving a historic breakthrough.
Application
1. Can be used for providing insulating layer On The Floor. It can adjust the density according the mix design from 200-1600kg/m3. 2. Can used for Roof Insulation of refrigerated storage space. Besides, it can be used for filling tunnel and mine. 3. Can be used for producing foam concrete panels and CLC Blocks.
Features
1. Frequency Converter: Adopts digital control technology, can exactly adjust foam cement density. 2. Static Mixer : Reduce the ratio of foam loss and guarantee the quality of the foam concrete. 3. Hose Pump: Compared with screw pump and piston pump, the hose pump has almost no damage to the performance of foamed concrete. 4. Screw Conveyor: Time-saving and labour-saving, very convenient to use. 5. Dust Cover: Protect working people from dust, keep healthy.
Technical data
| Model | GF10B |
| Max. theoretical concrete put(m³/h) | 10 |
| Motor power(kw) | 13.2 |
| Theoretical vertical conveying height(m) | 40 |
| Theoretical level transmission distance(m) | 300 |
| Mixer tank capacity(L) | 350 |
| Filling height(mm) | 1000 |
| Feeder size(mm) | 2990*760*830 |
| Overall dimension(mm) | 2390*1490*1440 |
| Total weight(kg) | 1000 |

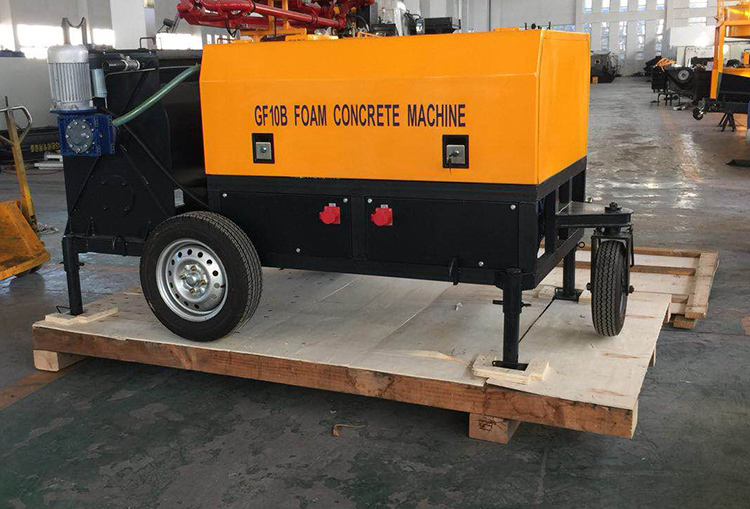

Delivery Of Foam Generator For Foam Concrete Machine:
Detail
