GF20 electric foam machine concrete machine
Model:GP20
Max.Output:20 m3/h
Motor power:21 kw
Mixer tank capacity:580 mm
Max.Horizontal Transporting Range:80 m
Max.Vertical Transporting Height:500 m
Description

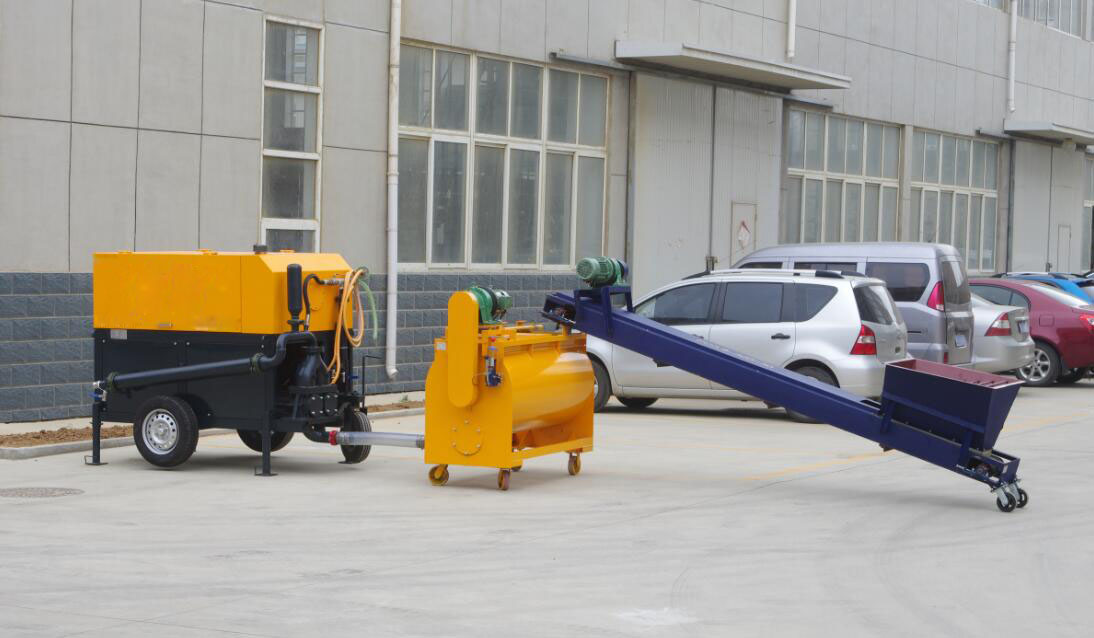

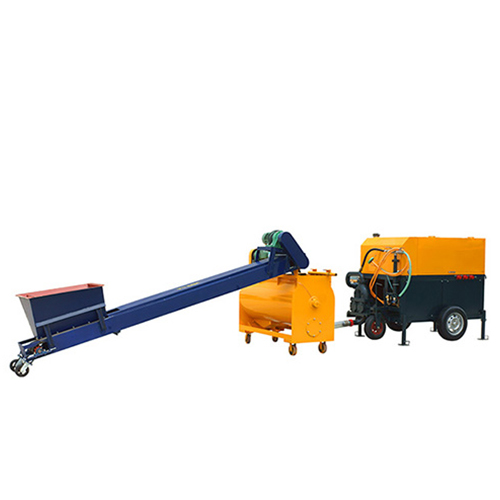

GF20 electric foam machine concrete machine includes A Screw (Belt) Conveyor, A Concrete Mixer, A Foam Generator And A Hydraulic Piston Pump, adopts centralized control technology, can exactly adjust the density of foam cement. The capacity is 20m3/h, horizontal pumping distance is 500m, vertical pumping distance is 80m, suitable to make floor and roof insulation.
Application

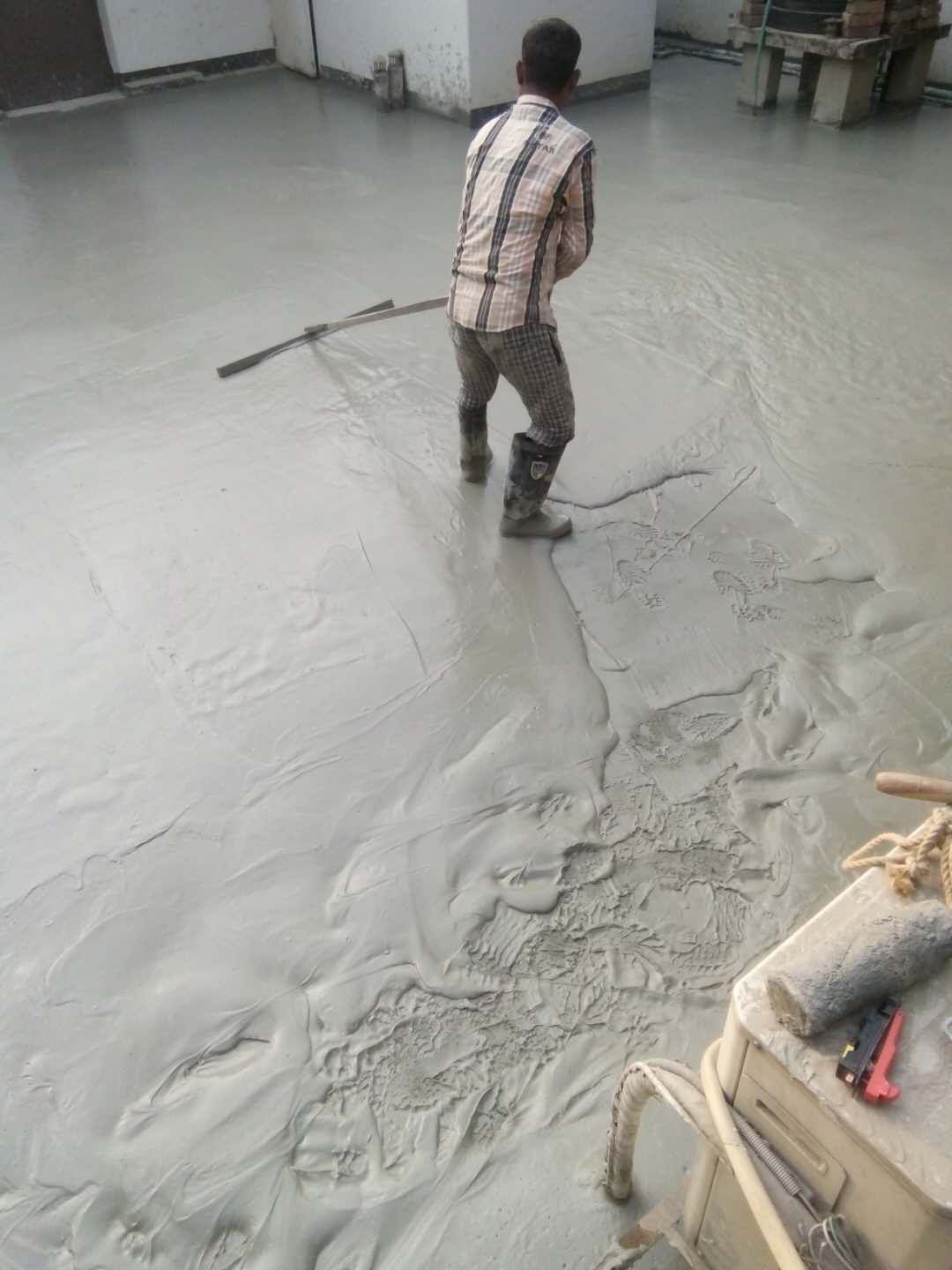

1. Can be used for providing insulating layer On The Floor. It can adjust the density according the mix design from 200-1600kg/m3. 2. Can used for Roof Insulation of refrigerated storage space. Besides, it can be used for filling tunnel and mine. 3. Can be used for cast in palce or filling the tunnel, basement, voids,etc.
Features
1. Frequency Converter:adopts digital control technology, can exactly adjust foam cement density. 2. Static Mixer: reduce the ratio of foam loss and guarantee the quality of the foam concrete. 3. Hydraulic Piston System: stable flow, small fluctuation, and low foam loss ratio. 4. Screw Conveyor: automatic delivery, time-saving and labour-saving.
Technical data
| Model No./Cement foam machine | GF20 |
| Max. theoretical concrete put(m³/h) | 20 |
| Motor power(kw) | 21 |
| Theoretical vertical conveying height(m) | 80 |
| Theoretical level transmission distance(m) | 500 |
| Mixer tank capacity(L) | 580 |
| Filling height(mm) | 1100 |
| Mixer size(mm) | 1940*780*1470 |
| Feeder size(mm) | 3990*760*830 |
| Main part overall dimension(mm) | 3000*1420*830 |
| Weight of main part(kg) | 1400 |
Detail
