GF10A foam cement plant
Model:GF10A
Maximum output:10m3/h
Motor power of foam concrete pump:3 kw
Motor power of water pump:3 kw
Conveying distance:80 meters
Maximum vertical distance:40 meters
Description

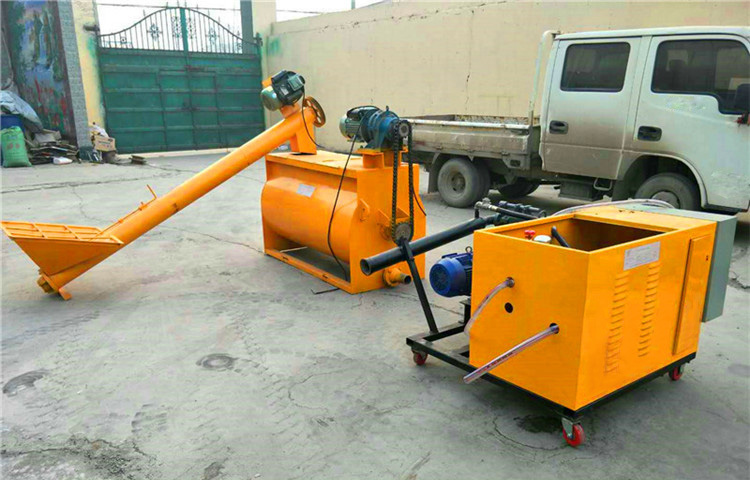

GF10A foam cement plant includes A Screw Feeder, A Concrete Mixer, A Foam Generator (With Air Compressor) And A Screw Delivery Pump. The capacity is 10m3/h, horizontal pumping distance is 80m, vertical pumping distance 40m. It is used to make floor isolation, roof insulation, filling etc.
Application
1. Can be used for Floor Heating. It can adjust the density according to the mix design from 200-1600kg/m3. 2. Can used for Roof Insulation of refrigerated storage space. Besides, it can be used for filling tunnel and mine.
Features
1. The machine uses high-pressure screw pump, can convey max height of 40 meters. 2. The weight is light, it is convenient to move or hang to floor for construction. 3. It is easy to operate; the bubble will be produced continuously once switched on. 4. The foam is exquisite even as the cheese. All kinds of foaming agent, both at home and abroad can be used. 5. The power can be adjusted based on customer request. Our machine can reduce the noise, reduce the dosage of foaming agent, and thereby reduce power consumption. 6. Compared similar machine, our product save about 50-100kg concrete per cube meter.
Technical data
| Model | GF10A |
| Mixer system | |
| Max. capacity | 10m3/h |
| Rotate speed | 35r/min |
| Volume | 1000L |
| Motor power | 3 kw |
| Feeder system | |
| Motor power | 2.2 kw |
| Length | 2.5 meter |
| Diameter | φ220mm |
| Pump system and foam system | |
| Maximum output | 10m3/h |
| Motor power of foam concrete pump | 3 kw |
| Motor power of water pump | 3 kw |
| Conveying distance | 80 meters |
| Maximum vertical distance | 40 meters |
| Voltage | 3 phase, 380V, 50Hz |
| Dimension | 1520*1130*760mm |
| Total weight of all the four systems | 750kg |
Detail
