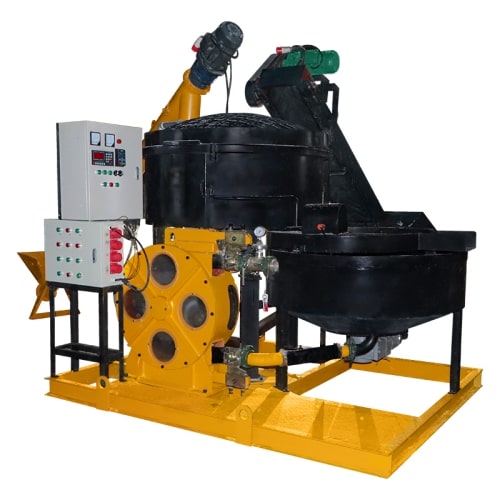

GFC1000-H Foam concrete machine
Model:GFC1000-H
Mixer Volume:600L
Mixer Power:7.5Kw,3 phase, 380V, 50Hz
Mixer Speed:45rpm
Agitator Volume::650L
Agitator Power:1.5KW，3 phase, 380V, 50Hz
Description
GFC1000-H foam concrete machine is composed of mixer, agitator, foam generator, hose pump, equipped with screw feeder, belt conveyor and submersible pump. The equipment is equipped with a weighing sensor and automatic batching system, which can set each batching weight and realize automatic feeding and full mixing. The process is completely controlled by the auto-weighing system. After the preparation work is completed, press the automatic button to start the automatic working. The mixer is started to mixing. Sand, cement, water and foaming agent are loaded in turn and mixed quickly after reaching the set weight. After the mixing is even, open the discharge door. The mixture flow down into the lower screen of the agitator. The low speed mixing blades are equipped in this agitator. After the mixture completely flow down, close the door and continue the next batch mixing. At the same time, start the hose pump to pump the foam concrete mixture to the work site.
Application
1.Cast-in-situ wall 2.External wall thermal insulation 3.Thermal insulation roofing 4.Thermal flooring 5.Upstanding beam foundation ditches filling 6.Sound insulation and fire protection walls 7.Playground and track construction 8.Sound insulation layer, tunnel lining filling 9.Cellar, basement and arch filling 10.Sewers and Drains filling 11.Horizontal floor heightening 12.Water tank and fuel tank building 13.Platform filling and mending 14.Garden and rockeries 15.Foam concrete block 16.Foamed concrete precasting ,hollow wallboard casting
Features
1.Automatic control and weight cell loading; material weight mixing ratio precise, simple operation, saving labor, great reliability; 2.Heavy duty and powerful mixer, easily to mix sand, cement, water and foam agent, as well as high efficiency to achieve continuous mixing and continuous work; 3.Up to 20bar high pumping pressure to meet high floor pumping requirement; 4.Foam agent can be added into the mixer continuously, high working efficiency.
Technical data
| Model | GFC1000-H | |
| Items | Specification | |
| Mixer | Volume | 600L |
| Power | 7.5Kw,3 phase, 380V, 50Hz | |
| Speed | 45rpm | |
| Agitator | Volume | 650L |
| Power | 1.5KW，3 phase, 380V, 50Hz | |
| High-tech pumping system | Output | 8m³/h, 20bar pumping pressure |
| Power | 7.5Kw，3 phase, 380V, 50Hz | |
| Pumping distance | Vertical: 130m; Horizontal:250m | |
| Foam generator | Foam output | 600L/min |
| Air pressure | 6 bar | |
| Dimension | 2400×1900×1960mm | |
| Weight | 1200kg | |
