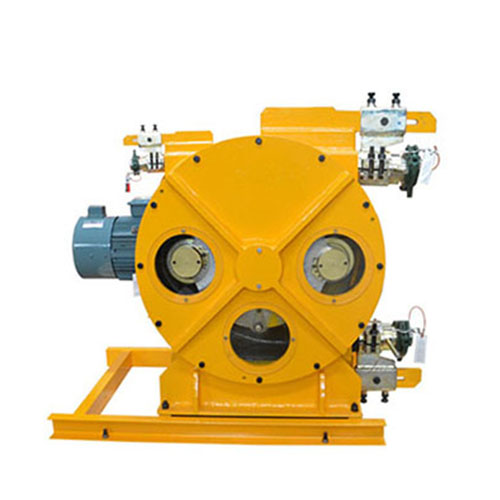

GH65 15m3/h hose pump for pumping foam concrete
Description
GH65 series foam concrete pouring hose pump (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.
Application
Features
1. No valves 2. Self-priming 3. Only tube to replace 4. Spiral bevel gear SEW series (Cycloidal pinwheel reducer gear box for option) 5. Mainly consists pump house, rotor, idel rotor, squeeze tube, and driving unit 6. Easy maintainance, low cost, short down time.
Technical data
Technical Data Of Hose Pump For Pumping Foam Concrete:
| Model | GH65 |
| Output | 15m3/h |
| Hose ID(mm) | 65mm |
| Voltage | 3 phase, 380V, 50HZ |
| Motor Power (kw) | 11 |
| Max. pressure | 15bar |
Detail
