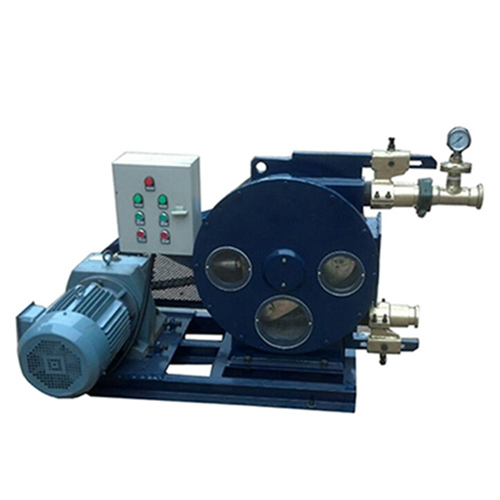

GH50 10m3/h foam concrete peristaltic pump
Description
GH50 CLC concrete grout hose pump (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.
Application
Features
1. No valves 2. Self-priming 3. Only tube to replace 4. Cycloidal pinwheel reducer gear box( Spiral bevel gear SEW series for option) 5. Mainly consists pump house, rotor, idel rotor, squeeze tube, and driving unit 6. Easy maintainance, low cost, short down time.
Technical data
Technical Data Of Foam Concrete Peristaltic Pump:
| Model | GH50 |
| Output | 10m3/h |
| Hose ID(mm) | 50mm |
| Voltage | 3 phase, 380V, 50HZ |
| Motor Power (kw) | 7.5 |
| Max. pressure | 15bar |
Detail
